CNI-CB120SB-E

温度/过程控制器 ? CNI-CB120SB Temperature - Process Controller
温度 - 过程控制器、自给式温度控制面板，带Omega的基于iSeries微处理器的控制器 - 12A (1440 W)容量

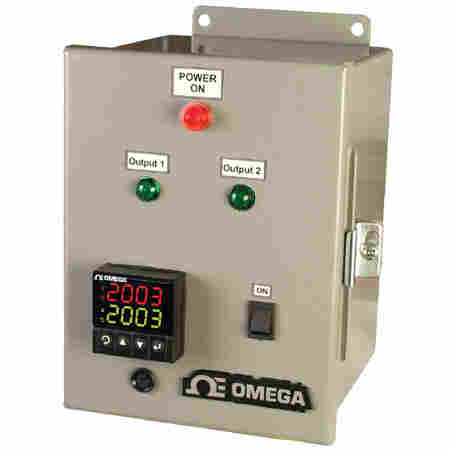

CNI-CB120SB Temperature - Process Controller

Easy-to-Use Digital Controller with On/Off, PID and Ramp/Soak
Optional Ethernet Control with Built-In Web Server
120V Operation
12 A (1440 W) Nominal, 15 A Max Capacity
Type K Input and M12 Female Connector Input for RTD or Process (0 to 1V, 0 to 10V, 4 to 20 mA)
On/Off Switch
Main Power Light
Output Indicator Lights
Two 7A Controlled Outputs with Standard 120V Power Output Receptical
Fuses for Controller, Output 1 and 2 Provided
For Indoor Use

产品描述
The CNI-CB120SB Series is a self-contained temperature/process control panel that provides a complete control system design, eliminating the need to select, collect and assemble separate components. The preconfigured panels are ready to install, requiring only supply power, load and sensor hook-up. They are equipped with an OMEGA? iSeries microprocessor-d controller with on/off, PID and ramp/soak capabilities along with a tri-color display. These control panels are supplied with a thermocouple input jack and M12 female connector for RTD or process inputs. Their compact packaging makes them portable or easy to mount, even in limited spaces.

For additional information on the CNI microprocessor-d controller, see "related s" above.
Specifications
Weight: 4.53 kg (10 lb)
Dimensions: 203 H x 152 W x 152 mm D (8 x 6 x 6")
Operating Temperature: 0 to 55°C (32 to 151°F)

Other thermocouple types are available. Please see the Part Number Builder directly below the ordering table.

Not available for export to Canada or Europe.

产品编号生成器
在此处生成您自己的产品编号


(1)
(2)

CNI-CB120SB-


选项说明:


(1) Thermocouple Type 选项:
K for K thermocouple
J for J thermocouple
T for T thermocouple
E for E thermocouple
N for N thermocouple
R for R thermocouple
S for S thermocouple

(2) Ethernet Option 选项:
无（选项为空白） for No Ethernet
-EI for Ethernet
注: 并非所有组合都有效，请查阅规格表上的有效产品编号。

产品编号  产品描述

Self Contained Temperature/Process Controller

CNI-CB120SB-K    Control panel, K calibration, RTD or process inputs

CNI-CB120SB-J   Control panel, J calibration, RTD or process inputs

Self Contained Temperature/Process Controller with Built-in Ethernet Web Server

CNI-CB120SB-K-EI  Control panel with Ethernet, K calibration, RTD or process inputs

CNI-CB120SB-J-EI  Control panel with Ethernet, J calibration, RTD or process inputs

Accessories

M12-S-M-FM  M12 field mountable 4-pin male connector with terminal lugs.

产品编号

CNI-CB120SB-K
CNI-CB120SB-J

CNI-CB120SB-K-EI
CNI-CB120SB-J-EI

M12-S-M-FM
