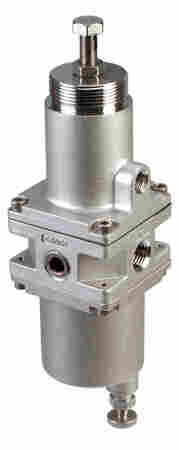

PRG352-60
恶劣环境的不锈钢过滤器
PRG350系列
1年保修
PRG350不锈钢气过滤减压阀
PRG350系列：不锈钢过滤器监管者的恶劣环境
PRG354-30
316不锈钢
高流量
利用远程通风排气口
的小空气量
25微米的过滤器
The PRG350 series of stainless steel filter regulators are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon elastomers make the PRG350 compatible with sour gas and adaptable to off shore environments.
规格
Exhaust Capacity: 1.0 scfm (1.7 m3/hr) (outlet pressure 10 psig above set point)
Air Consumption: 4 scfh (0.1 m3/hr) max
Maximum Supply Pressure: 290 psig (20.0 bar)
Operating Temperatures: -29 to 85°C (-20 to 185°F)
Filter: 25 micron
Porting:
Inlet/Outlet: 1/4 NPT or 1/2 NPT
Gauge (2): 1/4 NPT
Exhaust: 1/8 NPT
Materials: Meets NACE #MR-0175 material requirement for sulfide stress cracking
Body, Bonnet, Filter: AISI 316 stainless steel
Diaphragm Seals: Fluorocarbon
Range Spring, Pintle Spring: Inconel
Weight:
PRG352: 1.3 kg (2.9 lb)
PRG354: 1.0 kg (2.2 lb)
产品型号 产品描述
1/4 NPT Pressure Port Models
PRG354-30 0 to 30 psi (0 to 2.1 bar) output pressure range
PRG354-60 0 to 60 psi (0 to 4.1 bar) output pressure range
PRG354-100 0 to 100 psi (0 to 6.9 bar) output pressure range
PRG354-150 0 to 150 psi (0 to 10.3 bar) output pressure range
1/2 NPT Pressure Port Models
PRG352-30 0 to 30 psi (0 to 2.1 bar) output pressure range
PRG352-60 0 to 60 psi (0 to 4.1 bar) output pressure range
PRG352-100 0 to 100 psi (0 to 6.9 bar) output pressure range
PRG352-150 0 to 150 psi (0 to 10.3 bar) output pressure range
Accessories
PRG350-MN Mounting nut
PRG350-MB Mounting bracket and nut
PRG352-60
PRG352-60
