540-258 | 100545810
540-258 - Surface Mount Temperature Sensor (Pipe), 100K Ohm Thermistor, 1.25" with Clamps
| 产品 | |
| 商品编号(市售编号) | 540-258 | 100545810 |
| 产品说明 | 540-258 - Surface Mount Temperature Sensor (Pipe), 100K Ohm Thermistor, 1.25" with Clamps |
| 产品家族 | QAD20..U/536-../540-../544-.. - Surface-mount (Strap-on) Pipe Sensors |
| 产品生命周期 (PLM) | PM300:有效产品 |
| 交付信息 | |
| 出口管制规定 | AL : N / ECCN : EAR99 |
| 工厂生产时间 | 8 天 |
| 净重 (Kg) | 0.01816 Kg |
| 数量单位 | 1 件 |
| 包装数量 | 1 |
| 其他产品信息 | |
| EAN | 8 |
| UPC | 未提供 |
| 商品代码 | 9032100090 |
| LKZ_FDB/ CatalogID | BT_Catalog |
| 产品组 | QBE1 |
| 原产国 | 美国 |
| Compliance with the substance restrictions according to RoHS directive | 阐明 RoHS 合规性 |
Name | ID | 产品说明 |
|---|---|---|
536-780 | 100324288 | 表面安装温度传感器（管道），4 —20 mA, 2 x 4 金属箱带夹子 |
540-258 | 100545810 | 表面安装温度传感器（管道），100K Ohm热敏电阻，1.25" 带 Clamps |
544-089 | 100324355 | 表面安装温度传感器（管道），1K Ohm Platinum RTD (375 Alpha) |
QAD20..U/536-../540-../544-..
Surface-mount (Strap-on) Pipe Sensors
Surface-mount (Strap-on) Pipe Sensors
上海煦岳智能科技有限公司 杨工 手机： QQ：2817786724
De

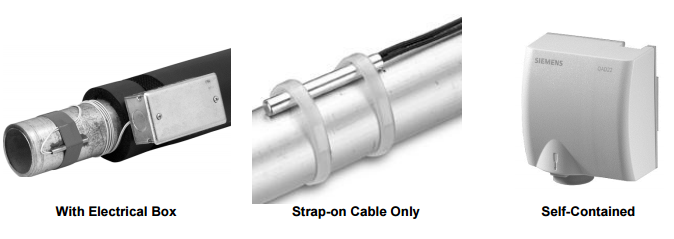

Siemens Surface Temperature Sensors monitor and transmit changes in temperature to the HVAC control system. The sensor resistance varies proportionally to the actual temperature being measured. The self-contained sensors and units with electrical boxes are ideal for measuring pipe surface temperature as a surrogate for actual fluid temperature when it is not possible to retrofit a full immersion type sensor. The strap-on cable style sensors can be used to acquire pipe surface temperature and can also be used to quickly acquire duct air temperature. When fitted with an appropriate protection tube, it can acquire temperature within a concrete slab. The QAH11.1 is designed specifically for use as a changeover temperature sensor with Siemens RDG Series room thermostats. Multiple output signals are available to ensure compatibility with most common HVAC control systems.
