概述

The SINAMICS G120 frequency inverter is designed to provide precise and cost-effective speed/torque control of three-phase motors.

With different device versions ( sizes FSA to FSGX) in a power range from 0.37 kW to 250 kW (0.5 hp to 400 hp), it is suitable for a wide variety of drive solutions.

Example: SINAMICS G120, sizes FSA, FSB and FSC; each with Power Module, CU240E‑2 F Control Unit and Basic Operator Panel BOP-2

Example: SINAMICS G120, sizes FSD, FSE and FSF; each with Power Module, CU240E‑2 F Control Unit and Intelligent Operator Panel IOP

Example: SINAMICS G120, size FSGX; with Power Module, CU240E‑2 F Control Unit and Basic Operator Panel BOP-2

Operator-friendly design

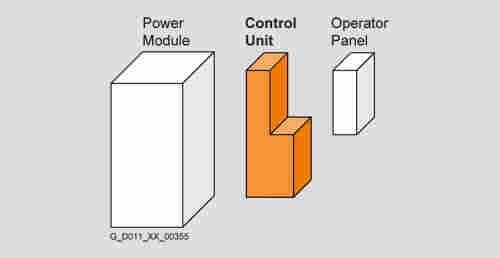

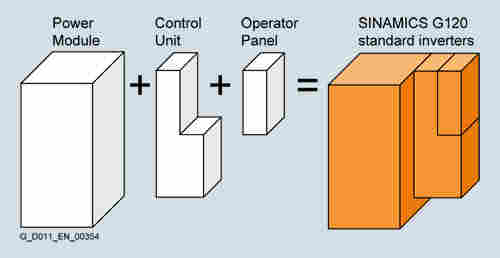

SINAMICS G120 is a modular inverter system that essentially comprises two function units:

• Control Unit (CU)

• Power Module (PM)

The Control Unit controls and monitors the Power Module and the connected motor using several different closed-loop control types that can be selected. It supports communication with a local or central controller and monitoring devices.

The Power Module supplies the motor in the power range 0.37 kW to 250 kW (0.5 hp to 400 hp). It features state-of-the-art IGBT technology with pulse-width-modulated motor voltage and selectable pulse frequency. Comprehensive protection functions provide a high degree of protection for the Power Module and the motor.

The Control Units can be combined with the following Power Modules:

Control UnitsPower Modules degree of protection IP20 PM240‑2PM240PM250CU230P‑2✓ ✓ ✓ CU240E‑2✓ ✓ ✓ CU250S‑2✓ ✓ ✓

Safety Integrated

SINAMICS G120 standard inverters are available in different versions for safety-related applications. The PM240‑2 and PM250 Power Modules are already designed for Safety Integrated. PM240 Power Modules, size FSGX (i.e. 160 kW/250 hp and higher) are approved only for the Basic Safety functions (STO, SS1, and SBC). A drive can be combined with a Control Unit with safety functions (see overview) in order to create a Safety Integrated drive. The availability of Safety Integrated functions depends on the type of Control Unit.

Control UnitBasic Safety functionsExtended Safety functions STOSS1SBC 1)SLSSDISSMCU230P‑2––––––CU240E‑2✓ –––––CU240E‑2 F✓ ✓ –✓ ✓ ✓ 2)CU250S‑2✓ ✓ ✓ ✓ 3)✓ 3)✓ 3)

¹⁾ The SBC function can be utilized only if a Safe Brake Relay is installed.

²⁾ SSM possible only for CU240E‑2 DP‑F / CU240E‑2 PN‑F Control Units with PROFIsafe.

³⁾ With license for Extended Safety functions.

Basic Safety functions (certified according to IEC 61508 SIL 2, and EN ISO 13849‑1 PL d and Category 3)

• Safe Torque Off (STO)
  to protect against active movement of the drive

• The PM240‑2 Power Modules, sizes FSD to FSF additionally offer STO acc. to IEC 61508 SIL 3 and EN ISO 13489‑1 PL e and Category 3.

• Safe Stop 1 (SS1)
  for continuous monitoring of a safe braking ramp

• Safe Brake Control (SBC) is used to safely control a holding
  brake. When enabled, SBC is always activated at the same time as STO. The Safe Brake Relay is used for SBC.

Extended Safety functions (certified according to IEC 61508 SIL 2 and EN ISO 13849‑1 PL d and Category 3)

• Safely Limited Speed (SLS)
  for protection against dangerous movements on exceeding a speed limit

• Safe Direction (SDI)
  This function ensures that the drive can only rotate in the selected direction.

• Safe Speed Monitoring (SSM)
  This function signals if a drive operates below a specific speed/feed velocity.

Basic Safety and Extended Safety functions can be activated via PROFIsafe or by means of the safety inputs.

None of the safety functions require a motor encoder and they are thus cheaper and easier to implement. Existing systems in particular can be simply updated with safety technology without the need to change the motor or mechanical system.

The Safe Torque Off (STO) function can be used without restriction for all applications. The SS1, SLS, SSM and SDI functions are only permissible for applications where the load can never accelerate when the inverter is switched off. They are therefore not permitted for applications involving pull-through loads such as hoisting gear and unwinders.

Additional information is provided in chapter Highlights, section Safety Integrated.

Efficient Infeed Technology

The innovative Efficient Infeed Technology is employed in PM250 Power Modules. This technology allows the energy produced by motors operating in generator mode connected to standard inverters to be fed back into the supply system. For control cabinets, an additional temperature rise can be avoided and the amount of space required can be reduced due to the fact that components such as braking resistors, braking choppers and line reactors can be eliminated. Further, wiring and engineering costs are significantly reduced. At the same time, energy consumption can be reduced and ongoing operating costs noticeably reduced.

Additional information is provided in chapter Highlights, section Efficient Infeed Technology.

Innovative cooling concept and varnishing of electronic modules

The new cooling system and varnishing of the electronic modules significantly increases the service life or useful life of the device.

• Disposal of all heat losses via an external heat sink

• Consequential convection cooling of the Control Unit, electronic modules are not located in the air duct

• All cooling air from the fan is directed through the heat sink

Energy efficiency

Integrated technologies help when optimizing the energy usage of the plant or system referred to the particular application:

• Energy-efficient vector control with or without sensors

• Automatic flux reduction with U/f ECO mode

• Integrated energy saving computer

Additional information is provided in chapter Highlights, section Energy efficiency.

优势

• Modularity ensures flexibility for a drive concept that is fit for the future

• Control Unit can be hot-swapped

• Pluggable terminals

• The modules can be easily replaced, which makes the system extremely service friendly

• The integrated safety functions significantly reduce the costs when integrating drives into safety-oriented machines or systems

• Communications-capable via PROFINET or PROFIBUS with PROFIdrive Profile 4.0

• Plant-wide engineering

• Easy to handle

• The innovative circuit design (bidirectional input rectifier with "pared-down" DC ) allows the kinetic energy of a load to be fed back into the supply system when PM250 Power Modules are used. This feedback capability provides enormous potential for savings because generated energy no longer has to be converted into heat in a braking resistor

• Integrated USB interface for simplified, local commissioning and diagnostics

• Application-specific functions for pumps, fans and compressors
  Integrated are, e.g.:

• 4 freely-programmable PID controllers

• Application-specific wizards

• Pt1000/LG-Ni1000 temperature sensor interface

• 230 V AC relay

• 3 freely-programmable digital time switches

• With CU250S‑2 Control Units: Integrated positioning functionality (basic positioner EPos) supports process-related implementation of positioning tasks with a high dynamic response. Positioning can be implemented with an incremental and/or absolute encoder (SSI)

• With CU250S‑2 Control Units: Encoder interfaces DRIVE‑CLiQ, HTL/TTL/SSI (SUB‑D) and resolver/HTL (terminal)

• With CU250S‑2 Control Units: Vector control with or without sensors

• Integrated control functionality by using BICO technology

• An innovative cooling concept and coated electronic modules increase robustness and service life

• External heat sink

• Electronic components are not located in air duct

• Control Unit that is completely cooled by convection

• Additional coating of the most important components

• Simple unit replacement and quick copying of parameters using an optional Operator Panel or an optional memory card

• Quiet motor operation as a result of the high pulse frequency

• Compact, space-saving design

• Software parameters for simple adaptation to 50 Hz or 60 Hz motors (IEC or NEMA motors)

• 2/3-wire control for static/pulsed signals for universal control via digital inputs

• Fast engineering and commissioning by using standard engineering tools such as SIZER for Siemens Drives, STARTER, SINAMICS Startdrive, and Drive ES – STARTER is integrated into STEP 7 using Drive ES Basic, with all of the benefits of central data management and totally integrated communication

• Certified worldwide for compliance with CE, UL, cUL, C-Tick (RCM) and Safety Integrated according to IEC 61508 SIL 2 and EN ISO 13849‑1 PL d and Category 3

• The PM240‑2 Power Modules, sizes FSD to FSF additionally offer STO acc. to IEC 61508 SIL 3 and EN ISO 13489‑1 PL e and Category 3.

设计

Application-orientated design of SINAMICS G120

SINAMICS G120 standard inverters are modular inverters for standard drives. Selection of the SINAMICS G120 is reduced to two or three steps thanks to the modular system used.

Selecting the Control Unit

The optimum Control Unit is selected first, d on the number of I/Os and any additional functions required such as Safety Integrated or HVAC. The communication options are already integrated and do not have to be additionally ordered or plugged in. Three product series are available corresponding to the particular application.

CU230P‑2 Control Units

The CU230P‑2 Control Units have been specifically designed for pump, fan and compressor applications.
The CU230P‑2 is the Control Unit for the pump, fan and compressor inverters SINAMICS G120P and SINAMICS G120P Cabinet. Detailed information can be found in Catalog D 35.

Control Unit CU240E‑2

The CU240E‑2 Control Unit is suitable for a wide range of applications in general machine construction, such as conveyor belts, mixers and extruders.

CU250S‑2 Control Units

The CU250S‑2 Control Units are suitable for applications involving single drives with exacting speed control requirements such as extruders and centrifuges, and for positioning tasks such as conveyor belts, lifting/lowering devices, etc. They can also be used to implement multi-motor drives without DC coupling such as wire-drawing machines and simple material lines.

DeionFieldbusProfileInputsOutputsIntegrated safety technologyFail-safedigital inputsdigital outputsControl Unit      Article No.CU230P‑2 series - the specialist for pumps, fans, compressors, water, buildingsTechnology functions (selection): Free function blocks (FFB), 4 × PID controller, cascade connection, hibernation mode, essential service mode, multi-zone controlCU230P‑2 HVACUSSModbus RTUBACnet MS/TPFLN P1–6 DI4 AI3 DO2 AO––6SL3243-0BB30-1HA3CU230P‑2 DPPROFIBUS DPPROFIdrive6SL3243-0BB30-1PA3CU230P‑2 PNPROFINETPROFIdrivePROFIenergy6SL3243-0BB30-1FA0EtherNet/IPODVA AC driveSINAMICS profile–CU240E‑2 series – for standard applications in general machinery construction, such as conveyor belts, mixers and extruders – without encoderTechnology functions (selection): Free function blocks (FFB), 1 × PID controller, motor holding brakeCU240E‑2USSModbus RTU–6 DI2 AI3 DO2 AOSTO1 F-DI(opt. for each 2 DI)6SL3244-0BB12-1BA1CU240E‑2 DPPROFIBUS DPPROFIdrivePROFIsafe6SL3244-0BB12-1PA1CU240E‑2 PNPROFINETPROFIdrivePROFIsafePROFIenergy6SL3244-0BB12-1FA0EtherNet/IPODVA AC driveSINAMICS profile–CU240E‑2 FUSSModbus RTU–STO, SS1, SLS, SDI3 F-DI(opt. for each 2 DI)6SL3244-0BB13-1BA1CU240E‑2 DP‑FPROFIBUS DPPROFIdrivePROFIsafeSTO, SS1, SLS, SSM 1), SDI6SL3244-0BB13-1PA1CU240E‑2 PN‑FPROFINETPROFIdrivePROFIsafePROFIenergy6SL3244-0BB13-1FA0EtherNet/IPODVA AC driveSINAMICS profile–CU250S‑2 series – for complex applications such as extruders and centrifuges – with and without encoder (basic positioner (EPos) optional)Technology functions (selection): Free function blocks (FFB), 1 × PID controller, motor holding brakeCU250S‑2USSModbus RTU–11 DI2 AI3 DO2 AO4 DI/DO (DI can be used as high-speed inputs)STO, SBC, SS13 F-DI(opt. for each 2 DI)1 F-DO(opt. for each 2 DO)6SL3246-0BA22-1BA0CU250S‑2 DPPROFIBUS DPPROFIdrivePROFIsafe6SL3246-0BA22-1PA0CU250S‑2 PNPROFINETPROFIdrivePROFIsafePROFIenergy6SL3246-0BA22-1FA0EtherNet/IPODVA AC driveSINAMICS profile–CU250S‑2 CANCANopen–6SL3246-0BA22-1CA0

¹⁾ SSM is possible only with PROFIsafe.

Optional memory card with firmware V4.7 SP6 for CU230P‑2, CU240E‑2 and CU250S‑2 Control Units

DeionSuitable forArticle No.SINAMICS SD card512 MB + firmware V4.7 SP6 (Multicard V4.7 SP6)CU230P‑2CU240E‑2CU250S‑26SL3054-7TD00-2BA0

Optional memory cards with licenses for CU250S‑2 Control Units only

DeionSINAMICS SD card512 MB + licensesSINAMICS SD card512 MB + firmware V4.7 SP6 (Multicard V4.7 SP6) + licensesLicenses (without SD card)for upgrading license of an existing SD card Article No.Article No.Article No.License Extended Functions Basic positioner (EPos)6SL3054-4AG00-2AA0-ZE016SL3054-7TD00-2BA0-ZE016SL3074-7AA04-0AA0License Extended Functions Safety (SLS, SSM, SDI)6SL3054-4AG00-2AA0-ZF016SL3054-7TD00-2BA0-ZF016SL3074-0AA10-0AA0Licenses Extended Functions Basic positioner (EPos) + Safety (SLS, SSM, SDI)6SL3054-4AG00-2AA0-ZE01+F016SL3054-7TD00-2BA0-ZE01+F01–

For additional information about firmware V4.7 SP6:

https://support.industry.siemens.com/cs/document/109482094

Optional memory cards with firmware V4.6 or V4.7 for existing installations when service is required

DeionSuitable forArticle No.SINAMICS SD card512 MB + firmware V4.6 (Multicard V4.6)CU230P‑2CU240E‑2CU250S‑26SL3054-7EG00-2BA0SINAMICS SD card512 MB + firmware V4.7 (Multicard V4.7)CU230P‑2CU240E‑2CU250S‑26SL3054-7EH00-2BA0

For an overview and more information on all available firmware versions, see https://support.industry.siemens.com/cs/document/67364620

Selecting the Power Module

The optimum power unit can be quickly selected d on the required motor power, the supply voltage and the braking cycles to be expected. Power Modules in degree of protection IP20 are intended for installation in a control cabinet.

PM240‑2 and PM240 Power Modules – IP20 degree of protection

PM240‑2 Power Modules have an integrated braking chopper (four-quadrant applications) and are suitable for a large number of applications in general machinery construction. The same applies for PM240 Power Modules, but the PM240 Power Modules in size FSGX do not have an integrated braking chopper. A plug-in Braking Module is optionally available for this purpose.

PM250 Power Modules – degree of protection IP20

PM250 Power Modules are suitable for the same applications as the PM240‑2/PM240. Any braking energy is directly fed back into the line supply (four-quadrant applications – a braking resistor is not required).

The Power Modules can be combined with the following Control Units:

Control UnitsPower Modules degree of protection IP20 PM240‑2/PM240PM250CU230P‑2✓ ✓ CU240E‑2✓ ✓ CU250S‑2✓ ✓

PM240, PM240‑2 and PM250 Power Modules

Rated power 1) Rated output current Irated2)PM240‑2 Power Modules 3)Degree of protection IP20All CUs pluggablePM250Power Module degree of protection IP20All CUs pluggablekWhpAArticle No.Article No.200 ... 240 V 1 AC/3 AC0.550.753.26SL3210-1PB13-0❒L0–0.7514.26SL321❒-1PB13-8❒L0–1.11.566SL3210-1PB15-5❒L0–1.527.46SL3210-1PB17-4❒L0–2.2310.46SL321❒-1PB21-0❒L0–3413.66SL3210-1PB21-4❒L0–4517.56SL321❒-1PB21-8❒L0–200 ... 240 V 3 AC5.57.5226SL3210-1PC22-2❒L0–7.510286SL3210-1PC22-8❒L0–1115426SL3210-1PC24-2UL0–1520546SL3210-1PC25-4UL0–18.525686SL3210-1PC26-8UL0–2230806SL3210-1PC28-0UL0–30401046SL3210-1PC31-1UL0–37501306SL3210-1PC31-3UL0–45601546SL3210-1PC31-6UL0–55751786SL3210-1PC31-8UL0–380 ... 480 V 3 AC0.37 4)0.51.3– 4)–0.550.751.76SL3210-1PE11-8❒L1–0.7512.26SL3210-1PE12-3❒L1–1.11.53.16SL3210-1PE13-2❒L1–1.524.16SL3210-1PE14-3❒L1–2.235.96SL3210-1PE16-1❒L1–347.76SL321❒-1PE18-0❒L1–4510.26SL3210-1PE21-1❒L0–5.57.513.26SL3210-1PE21-4❒L0–7.510186SL321❒-1PE21-8❒L06SL3225-0BE25-5AA1111526/256SL3210-1PE22-7❒L06SL3225-0BE27-5AA11520326SL321❒-1PE23-3❒L06SL3225-0BE31-1AA118.525386SL3210-1PE23-8❒L06SL3225-0BE31-5❒A02230456SL3210-1PE24-5❒L06SL3225-0BE31-8❒A03040606SL3210-1PE26-0❒L06SL3225-0BE32-2❒A03750756SL3210-1PE27-5❒L06SL3225-0BE33-0❒A04560906SL3210-1PE28-8❒L06SL3225-0BE33-7❒A055751106SL3210-1PE31-1❒L06SL3225-0BE34-5❒ASL3210-1PE31-5❒L06SL3225-0BE35-5❒A0901251786SL3210-1PE31-8❒L06SL3225-0BE37-5❒A01101502056SL3210-1PE32-1❒L0–1322002506SL3210-1PE32-5❒L0–SL3224-0XE41-3UA0–200 3)3003706SL3224-0XE41-6UA0–250 3)4004776SL3224-0XE42-0UA0–500 ... 690 V 3 AC
