PTRA-1438-12-1
热电偶 » 保护管和绝缘体 » PTRA and PTRM Series Omegatite 350 and 450
陶瓷热电偶保护管
RoHS
Maximu Service Temperature to 1950°C (3540°F) for OMEGATITE® 450
Standard Lengths of 12, 18 and 24 Inches

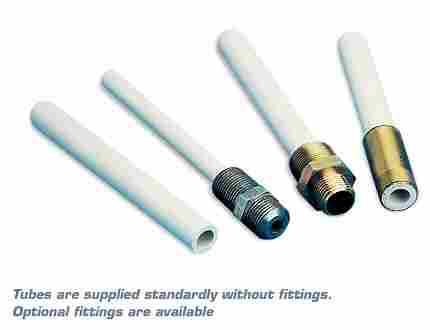

Tubes Supplied Standardly Without Fittings. Consult Sales for Optional Fittings.
产品描述
Ceramic Thermocouple Protection Tubes
PTRA
OMEGATITE® 450 PTRM
OMEGATITE® 300 Dimensions
Model No. Model No. Inside Dia.
mm (in.) Outside Dia.
mm (in.) Tube Length*
mm (inches)
PTRA-11618-12
PTRA-11618-18
PTRA-11618-24 PTRM-11618-12
PTRM-11618-18
PTRM-1") 3.0 (1/8") 300 (12")
450 (18")
600 (24")
PTRA-564532-12
PTRA-564532-18
PTRA-564532-24 PTRM-564532-12
PTRM-564532-18
PTRM-564532-24 2.0 (5/64") 4.0 (5/32") 300 (12")
450 (18")
600 (24")
PTRA-53214-12
PTRA-53214-18
PTRA-53214-24 PTRM-53214-12
PTRM-53214-18
PTRM-53214-24 4.0 (5/32") 6.0 (1/4") 300 (12")
450 (18")
600 (24")
PTRA-31614-12
PTRA-31614-18
PTRA-31614-24 PTRM-31614-12
PTRM-31614-18
PTRM-3") 6.0 (1/4") 300 (12")
450 (18")
600 (24")
PTRA-316516-12
PTRA-316516-18
PTRA-316516-24 PTRM-316516-12
PTRM-316516-18
PTRM-36") 8.0 (5/16") 300 (12")
450 (18")
600 (24")
PTRA-1438-12
PTRA-1438-18
PTRA-1438-24 PTRM-1438-12
PTRM-1438-18
PTRM-1438-24 6.0 (1/4") 8.0 (3/8") 300 (12")
450 (18")
600 (24")
PTRA-516716-12
PTRA-516716-18
PTRA-56") 11.0 (7/16") 300 (12")
450 (18")
600 (24")
PTRA-51612-12
PTRA-51612-18
PTRA-51612-24 PTRM-51612-12
PTRM-51612-18
PTRM-5") 12.5 (1/2") 300 (12")
450 (18")
600 (24")
PTRA-3812-12
PTRA-3812-18
PTRA-3812-24 PTRM-3812-12
PTRM-3812-18
PTRM-3812-24 8.0 (3/8") 12.5 (1/2") 300 (12")
450 (18")
600 (24")
PTRA-7161116-12
PTRA-7161116-18
PTRA-7161116-24 PTRM-7161116-12
PTRM-7161116-18
PTRM-7161116-24 11.0 (7/16") 17.5 (11/16") 300 (12")
450 (18")
600 (24")
PTRA-1234-12
PTRA-1234-18
PTRA-1234-24 PTRM-1234-12
PTRM-1234-18
PTRM-1234-24 12.5 (1/2") 19.0 (3/4") 300 (12")
450 (18")
600 (24")
PTRA-5878-12
PTRA-5878-18
PTRA-5878-24 PTRM-5878-12
PTRM-5878-18
PTRM-5878-24 16.0 (5/8") 22.0 (7/8") 300 (12")
450 (18")
600 (24")
PTRA-341-12
PTRA-341-18
PTRA-341-24 PTRM-341-12
PTRM-341-18
PTRM-341-24 19.0 (3/4") 25.5 (1") 300 (12")
450 (18")
600 (24")
PTRA-78118-12
PTRA-78118-18
PTRA-78118-24 PTRM-78118-12
PTRM-78118-18
PTRM-78118-24 22.0 (7/8") 28.5 (1 1/8") 300 (12")
450 (18")
600 (24")
PTRA-1114-12
PTRA-1114-18
PTRA-1114-24 PTRM-1114-12
PTRM-1114-18
PTRM-1114-24 25.5 (1") 32.0 (1 1/4") 300 (12")
450 (18")
600 (24")
PTRA-5MM7MM-12
PTRA-5MM7MM-18
PTRA-5MM7MM-24 5 mm 7 mm 300 (12")
450 (18")
600 (24")
*Length: The tube lengths shown are standard lengths for a tube without any fittings. Special lengths are also available. Consult Sales.
产品编号 产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
PTRA-1114-12 Ceramic T/C Protection Tube, 1" ID, 1 1/4" OD, 12" Tube Length
PTRA-11618-18 Ceramic T/C Protection Tube, 1/16" ID, 1/8" OD, 18" Tube Length
PTRA-316516-24 Ceramic T/C Protection Tube, 3/16" ID, 5/16" OD, 24" Tube Length
PTRM-31614-12 Ceramic T/C Protection Tube, 3/16" ID, 1/4" OD, 12" Tube Length
PTRM-51612-24 Ceramic T/C Protection Tube, 5/16" ID, 1/2" OD, 24" Tube Length
