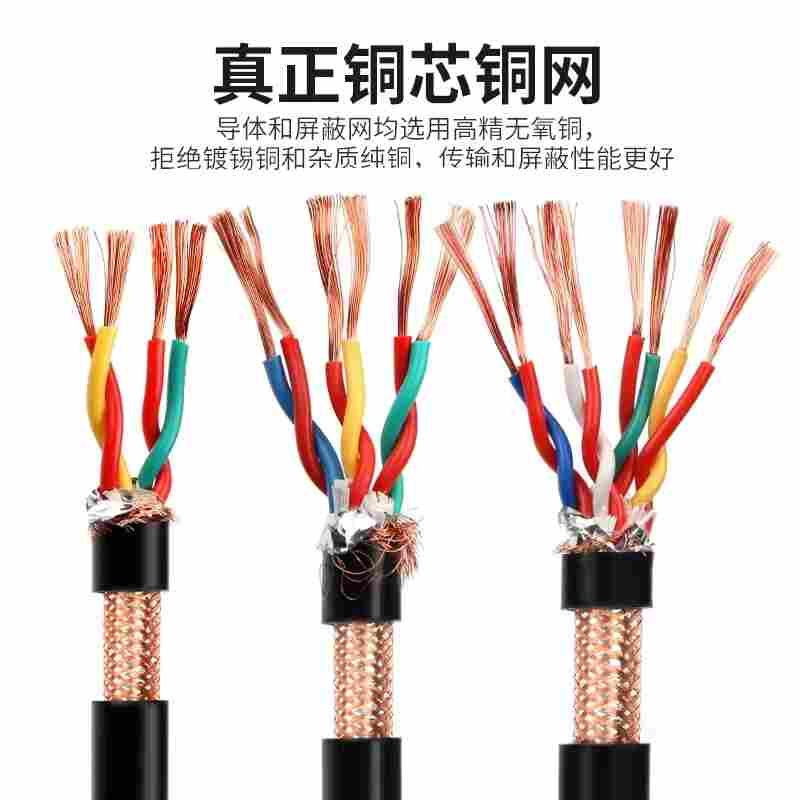

RVSP屏蔽双绞线
来源：天津市电缆总厂第一分厂
发布时间：2022-04-30 14:44:40
RVVSP屏蔽双绞线
适用于监控视频信号、门禁考勤、防盗启动紧急信号、楼宇对讲、通讯音频、仪表、电子设备及自动化设备、抗干扰线路屏蔽
*标准、企业标准
技术参数：
导体使用多支铜线绞合
聚氯乙烯绝缘
裸铜或镀锡铜编织屏蔽
聚氯乙烯护套
额定电压Uo/U为300/300V
长期许工作温度应不过70℃
200米/卷(包装规格可根据客户要求更改。)
|
型号/规格 |
芯数×标称截面（m㎡） |
绝缘厚度规定值（mm） |
护套厚度规定值（mm） |
编织屏蔽密度≥% |
平均外径（mm） |
20℃时导体电阻大值Ω/Km |
70℃时导体电阻小值MΩ.Km |
|
|
上限 |
下限 |
|||||||
|
RVVSP 1×2×7/0.15 |
1×2×0.12 |
0.4 |
0.6 |
80 |
3.7 |
4.9 |
158 |
0.016 |
|
RVVSP 1×2×12/0.15 |
1×2×0.20 |
0.4 |
0.6 |
80 |
4.1 |
5.3 |
92.3 |
0.013 |
|
RVVSP 1×2×16/0.15 |
1×2×0.30 |
0.5 |
0.6 |
80 |
4.8 |
6.2 |
69.2 |
0.014 |
|
RVVSP 1×2×16/0.20 |
1×2×0.50 |
0.5 |
0.6 |
80 |
5.3 |
6.8 |
39.0 |
0.012 |
|
RVVSP 1×2×24/0.20 |
1×2×0.75 |
0.5 |
0.6 |
80 |
5.8 |
7.4 |
26.0 |
0.010 |
|
RVVSP 1×2×32/0.20 |
1×2×1.0 |
0.6 |
0.6 |
80 |
6.4 |
8.2 |
19.5 |
0.010 |
|
RVVSP 2×2×7/0.15 |
2×2×0.12 |
0.4 |
0.6 |
80 |
4.5 |
5.8 |
158 |
0.016 |
|
RVVSP 2×2×12/0.15 |
2×2×0.20 |
0.4 |
0.6 |
80 |
4.9 |
6.2 |
92.3 |
0.013 |
|
RVVSP 2×2×16/0.0.15 |
2×2×0.30 |
0.5 |
0.6 |
80 |
5.5 |
7.0 |
69.2 |
0.014 |
|
RVVSP 2×2×16/0.20 |
2×2×0.50 |
0.5 |
0.7 |
80 |
5.8 |
7.8 |
39.0 |
0.012 |
|
RVVSP 2×2×24/0.20 |
2×2×0.75 |
0.5 |
0.7 |
80 |
6.6 |
8.6 |
26.0 |
0.010 |
|
RVVSP 2×2×32/0.20 |
2×2×1.0 |
0.6 |
0.8 |
80 |
7.4 |
9.4 |
19.5 |
0.010 |
|
RVVSP 4×2×7/0.15 |
4×2×0.12 |
0.4 |
0.8 |
80 |
5.1 |
7.1 |
158 |
0.016 |
|
RVVSP 4×2×12/0.15 |
4×2×0.20 |
0.4 |
0.8 |
80 |
5.6 |
7.6 |
92.3 |
0.013 |
|
RVVSP 4×2×16/0.15 |
4×2×0.30 |
0.5 |
0.8 |
80 |
6.7 |
8.7 |
69.2 |
0.014 |
|
RVVSP 4×2×16/0.20 |
4×2×0.50 |
0.5 |
0.8 |
80 |
7.9 |
9.9 |
39.0 |
0.012 |
|
RVVSP 4×2×24/0.20 |
4×2×0.75 |
0.5 |
0.9 |
80 |
9.4 |
11.4 |
26.0 |
0.010 |
|
RVVSP 4×2×32/0.20 |
4×2×1.0 |
0.6 |
1.0 |
80 |
1.04 |
12.5 |
19.5 |
0.010 |
