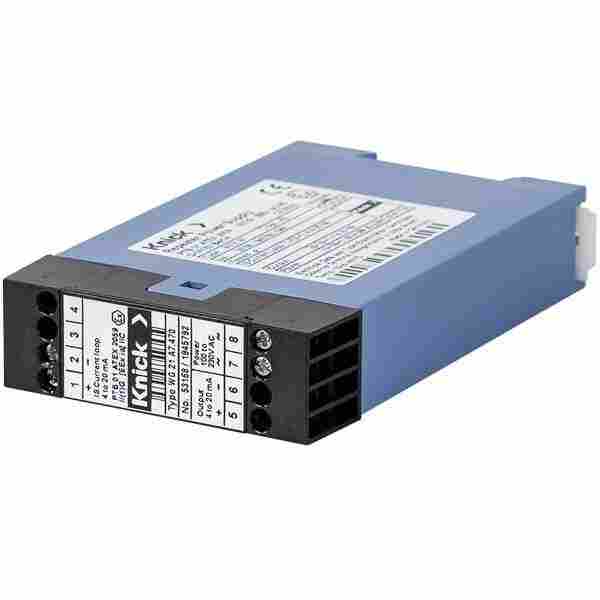

Isolated amplifier WG 21 A7
The isolated amplifier WG 21 supplies the intrinsically safe monitor with auxiliary energy and transfers the measured value. Can be integrated into the IQ Sensor Net
Highest safety, even at high ambient temperatures
Safe separation and isolation of input, output and auxiliary power
Can be connected to the IQ Sensor Net
The isolated amplifier is installed outside the zone and supplies the monitor within the zone with its own intrinsic power circuit. In addition, it transfers the meaured value via an mA output or via HART (optional). The WG 21 is also available with a 24 V AC/DC auxiliary voltage and can therefore be integrated into the IQ Sensor Net .
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| WG21A7 | Isolated amplifier | 109 446 EX | |||
| WG21A7 Opt. 470 | Isolated amplifier, with HART ® communication | 109 448 EX | |||
| WG21A7 Opt. 336,470 | Isolated amplifier, with auxiliary voltage 24 V AC/DC and HART ® communciation | 109 449 EX | |||
| WG21A7 Opt. 336 | Isolated amplifier, with auxiliary voltage 24 V AC/DC | 109 447 EX | |||
Technical Data
| Feed measuring circuit | Intrinsic feed voltage ≥ 18V |
| EMV | EN 61326-1 |
| Output | 4 … 20mA |
| Explosion proof | II (1)G [Ex ia Ga] IIC |
| Protection class | IP40, clamps IP20 |
| Model | Modular housing A7, with snap-on closure for hat rail 35 mm according to DIN EN 50022 |
Matching and supplemental products
EX monitor Stratos Pro A 201 X
EX pH/ORP fittings and measuring chains
EX conductivity measuring cells
EX accessories
Accessories
