LL-50-500F-6温度表-美国原装

卫生双金属温度计

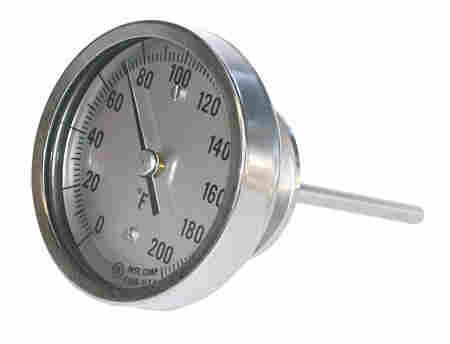

AA, BB, JJ and LL Sanitary Bil Thermometers

新产品!
卫生双金属温度计
AA, BB, JJ and LL Sanitary Bil Thermometers:卫生双金属温度计

3-A Certified Design
All 316/316L SS Wetted Parts
All Welded Construction
Easy to Calibrate Reset Screw
Hermetically Sealed
32 Ra Max on All Wetted Surfaces
Standard Connection: 1?" Tri-Grip? (Tri-Clamp? Compatible)
6 mm (?") Standard Stem Diameter
Glass Lens Standard
Standard Lengths From 2? to 15"

The OMEGA? sanitary bil thermometer is specially designed for direct insertion into sanitary process applications when a standard thermowell is not specified or the process environment is not exposed to pressure. The sanitary thermometer is ideal for the food, beverage and pharmaceutical industries.

产品型号 产品描述

Adjustable 3" Sanitary Dial Thermometer

LL--40-160F-21/2 2? inch Stem Length, 3" Dial, -40 TO 160°F

LL-50-500F-21/2 2? inch Stem Length, 3" Dial, 50 TO 500°F

LL--40-160F-4 4 inch Stem Length, 3" Dial, -40 TO 160°F

LL-0-200F-4 4 inch Stem Length, 3" Dial, 0 TO 200°F

LL-0-200F-6 6 inch Stem Length, 3" Dial, 0 TO 200°F

LL-50-500F-6 6 inch Stem Length, 3" Dial, 50 TO 500°F


Adjustable 5" Sanitary Dial Thermometer

JJ--40-160F-21/2 2? inch Stem Length, 5" Dial, -40 TO 160°F

JJ-50-500F-21/2 2? inch Stem Length, 5" Dial, 50 TO 500°F

JJ--40-160F-4 4 inch Stem Length, 5" Dial, -40 TO 160°F

JJ-0-200F-4 4 inch Stem Length, 5" Dial, 0 TO 200°F

JJ-0-200F-6 6 inch Stem Length, 5" Dial, 0 TO 200°F

JJ-50-500F-6 6 inch Stem Length, 5" Dial, 50 TO 500°F


Adjustable Sanitary Dial Thermometer - Dual Range

LL-0-250F--20-120C-21/2 2? inch Stem Length, 3" Dial, 0 TO 250°F and -20 TO 120°C

JJ-0-250F--20-120C-21/2 2? inch Stem Length, 5" Dial, 0 TO 250°F and -20 TO 120°C

LL-50-500F-10-260C-4 4 inch Stem Length, 3" Dial, 50 TO 500°F and 10 TO 260°C

JJ-50-500F-10-260C-4 4 inch Stem Length, 5" Dial, 50 TO 500°F and 10 TO 260°C


Back Connected 3" Sanitary Dial Thermometer

AA--40-160F-21/2 2? inch Stem Length, 3" Dial, -40 TO 160°F

AA-50-500F-21/2 2? inch Stem Length, 3" Dial, 50 TO 500°F

AA--40-160F-4 4 inch Stem Length, 3" Dial, -40 TO 160°F

AA-0-200F-4 4 inch Stem Length, 3" Dial, 0 TO 200°F

AA-0-200F-6 6 inch Stem Length, 3" Dial, 0 TO 200°F

AA-50-500F-6 6 inch Stem Length, 3" Dial, 50 TO 500°F


Back Connected Sanitary Dial Thermometer - Dual Range

AA-0-250F--20-120C-21/2 2? inch Stem Length, 3" Dial, 0 TO 250°F and -20 TO 120°C

AA-50-500F-10-260C-4 4 inch Stem Length, 3" Dial, 50 TO 500°F and 10 TO 260°C

注释: OPTIONS:
add "-SF" to the end of the model number for the silicone filled option, add 50 to price,
add "-PY" to the end of the model number for a polycarbonate window and add 7 to the price,
add "-R20" to the end of the model number for Ra20 max wetted finish and add 40 to price and 3/inch,
add "-NIST" to end of the model number for a 3 point NIST calibration certificate and add 100 to price.
订购示例: (1) JJ--40-160F-21/2 2? inch Stem Length, 5" Dial, -40 TO 160°F ,

产品型号说明
(1) (2) (3)

-
-
选项描述
(1) Series
选择
AA 代表 AA Series
BB 代表 BB Series
LL 代表 LL Series
JJ 代表 JJ Series
(2) Temperature Range
选择
-40-160F 代表 -40 to 160°F
25-125F 代表 25 to 125°F
0-200F 代表 0 to 200°F
0-250F 代表 0 to 250°F
50-300F 代表 50 to 300°F
50-500F 代表 50 to 500°F
150-750F 代表 150 to 750°F
-40-70C 代表 -40 to 70°C
0-50C 代表 0 to 50°C
0-100C 代表 0 to 100°C
-20-120C 代表 -20 to 120°C
0-150C 代表 0 to 150°C
0-250C 代表 0 to 250°C
50-400C 代表 50 to 400°C
-40-160F/-40-70C 代表 -40 to 160°F (-40 to 70°C)
25-125F/-5-50C 代表 25 to 125°F (-5 to 50°C)
0-200F/-10-90C 代表 0 to 200°F (-10 to 90°C)
0-250F/-20-120C 代表 0 to 250°F (-20 to 120°C)
50-300F/10-150C 代表 50 to 300°F (10 to 150°C)
50-500F/10-260C 代表 50 to 500°F (10 to 260°C)
150-750F/70-400C 代表 150 to 750°F (70 to 400°C)
(3) Stem Length
选择
21/2 代表 2 1/2 in
4 代表 4 in
6 代表 6 in
9 代表 9 in
12 代表 12 in
15 代表 15 in

LL-50-500F-6

LL-50-500F-6温度表-美国原装
