N5224A 43G参数指标N5224A
来源：深圳市龙华新区超利电子科技有限公司
发布时间：2022-07-04 12:01:02
N5224A 43G参数指标N5224A

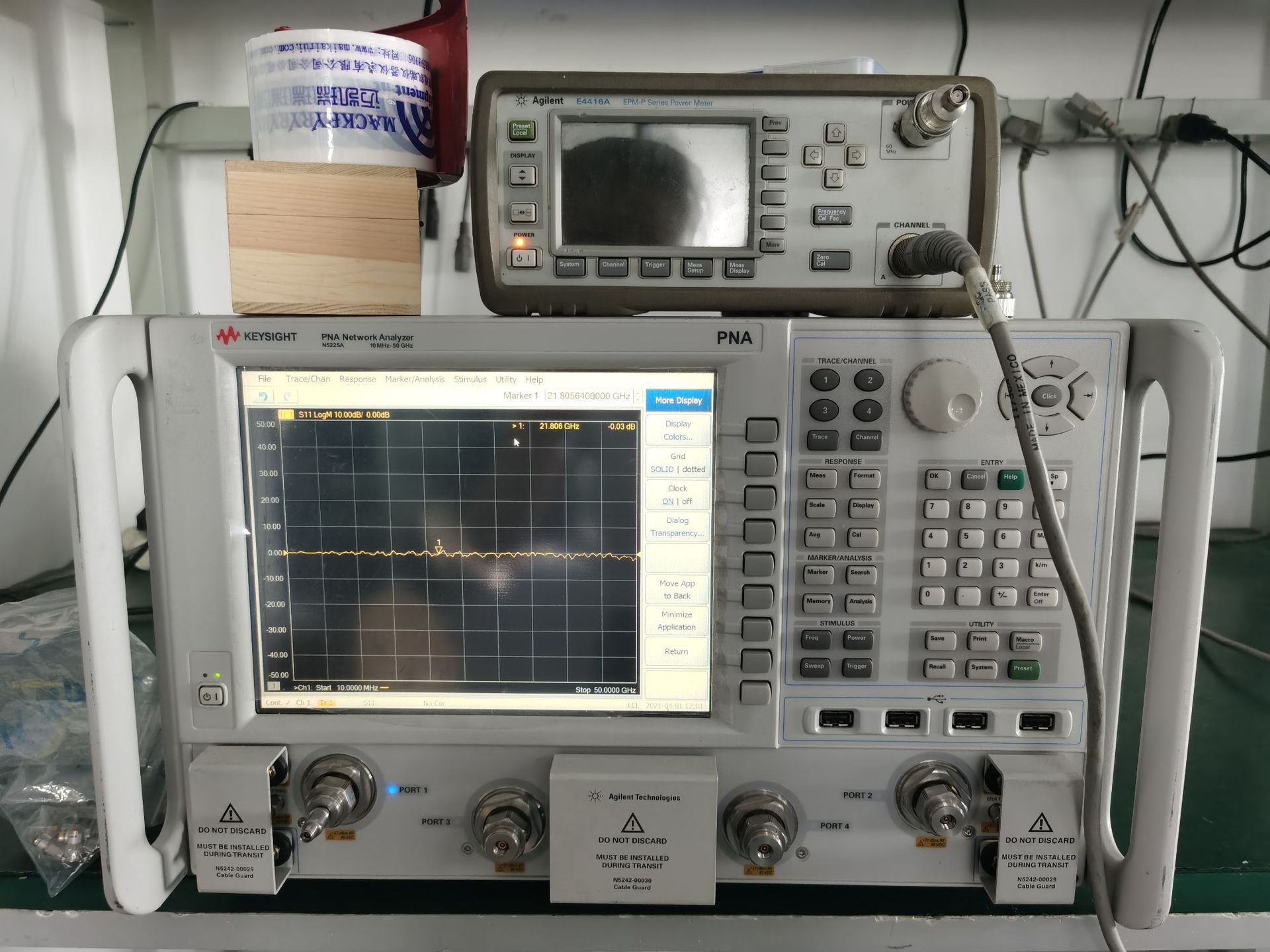

N5224A PNA 微波网络分析仪，43.5 GHz
- N5224A 43G参数指标N5224A
- 获得测量和设计成果
- PNA 提供*的测量完整性，可将深入的洞察转变为*的设计
- 使用性能出众的微波网络分析仪，应对苛刻的测量挑战
- 是德科技 S 参数测量有很高的精度
- 通过个性化配置得到恰当的性能，以满足您特定的预算和测量需求
N5224A 43G参数指标N5224A包括的内容:
- 插头、孔、底脚
- 安装和快速入门指南
- 安全手册
- 校准证书
- 3 个电感器（磁芯）
- 扳手
- 束线带
-
光学鼠标
N5224A 10 MHz to 43.5 GHz N5225A 10 MHz to 50 GHz
N5232A PNA-L 微波网络分析仪,20 GHz
N5231A PNA-L 微波网络分析仪,13.5 GHz
N5230A PNA-L 网络分析仪, 2 端口,高达 6, 13.5, 20, 40, 或 50 GHz网络分析仪
网络分析仪
N5231B PNA-L 微波网络分析仪，13.5 GHz
网络分析仪
N5234B PNA-L 微波网络分析仪，43.5 GHz
网络分析仪
N5235B PNA-L 微波网络分析仪，50 GHz
N5232B PNA-L 微波网络分析仪，20 GHz
PNA系列网络分析仪：
E8362B PNA 系列网络分析仪，10 MHz 至 20 GHz
E8363B PNA 系列网络分析仪, 10 MHz至 40 GHz
E8364B PNA 系列网络分析仪, 10 MHz 至 50 GHz
E8362A FNA 系列网络分析仪，45 MHz 至 20 GHz
E8363A PNA 系列网络分析仪，45 MHz 至 40 GHz
E8364A PNA 系列网络分析仪，45 MHz 至 50 GHz
E8361A PNA 系列网络分析仪，45 MHz 至 67G GHz
E8362C PNA 微波网络分析仪
E8363C PNA 微波网络分析仪
E8364C PNA 微波网络分析仪
E8361C PNA 微波网络分析仪
Keysight PNA微波网络分析仪
N5222A 10 MHz - 26.5 GHz
N5224A 10 MHz - 43.5 GHz
N5225A 10 MHz - 50 GHz
N5227A 10MHZ-67GHZ
E8361C 10MHZ-67GHZ
E8361A 10 MHz - 67 GHz
N5224B PNA 微波网络分析仪，900 Hz/10 MHz 至 43.5 GHz
N5224B 10 MHz 至 43.5 GHz，1 个信号源 2 端口和 2 个信号源 4 端口、信号源和接收机衰减器、偏置 T 型接头、脉冲发生器和调制器、噪声系数射频性能.
N5224B HIGHLIGHTS
- N5224A 43G参数指标N5224A
- 使用性能出众的微波网络分析仪，应对苛刻的测量挑战
- 在测量 S 参数时实现低的不确定度和高稳定度
- 利用应用软件简化设置，高效表征有源器件
- 通过定制化配置得到恰当的性能，满足您的特殊预算和测量需求
- 多点触控屏和直观的用户界面加速对元器件特性的分析
- 插孔、底脚
- 安装和快速入门指南
- 安全手册
- 校准证书
- 3 个电感器（磁芯）
- 扳手
- 束线带
- 光学鼠标
N5224A 43G参数指标N5224A Hardware options
| N5224B-200 |
2-port, |
|
| N5224B-201 | 2-port with configurable test set, reference mixer switch | |
| N5224B-205 | 2-port with configurable test set, ref mixer switch, bias tees, low frequency extension | |
| N5224B-210 | 2-port with metrology configuration | |
| N5224B-217 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators | |
| N5224B-219 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees | |
| N5224B-220 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension | |
| N5224B-400 | 4-port with second source | |
| N5224B-401 | 4-port with second source, configurable test set, reference mixer switch | |
| N5224B-405 | 4-port with second source, configurable test set, reference mixer switch, bias tees, low frequency extension | |
| N5224B-410 | 4-port with second source, metrology configuration | |
| N5224B-417 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators | |
| N5224B-419 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees | |
| N5224B-420 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension |
Calibration documentation
| N5224B-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | |
| N5224B-A6J | ANSI Z540-1-1994 Calibration | |
| N5224B-UK6 | Commercial calibration certificate with test data |
Additional hardware capability
| N5224B-020 | Add IF inputs | |
| N5224B-021 | Add pulse modulator to internal 1st source | |
| N5224B-022 | Add pulse modulator to internal 2nd source | |
| N5224B-UNY | Enhanced low phase noise performance |
Software with Subion
| S93007B | Automatic fixture removal | |
| S93010B | Time-domain analysis | |
| S93011B | Enhanced time domain analysis with TDR | |
| S93015B | Real-time S-parameter and power measurement uncertainty | |
| S93025B | Basic pulsed-RF measurements | |
| S93026B | Advanced pulsed-RF measurements | |
| S93029B | Noise figure measurements with vector correction | |
| S93080B | Frequency-offset measurements | |
| S93082B | Scalar mixer/converter measurements | |
| S93083B | Vector and scalar mixer/converter measurements | |
| S93084B | Embedded-LO capability | |
| S93086B | Gain-compression measurements | |
| S93087B | Intermodulation distortion measurements | |
| S93088B | Source phase control | |
| S93089B | Differential and I/Q device measurements | |
| S930900B | Spectrum analysis up to 8.5 GHz | |
| S930901B | Spectrum analysis up to 13.5 GHz | |
| S930902B | Spectrum analysis up to 26.5 GHz | |
| S930904B | Spectrum analysis up to 43.5 GHz | |
| S930909B | Spectrum analysis up to 90 GHz | |
| S93093B | Spectrum analysis to 120 GHz | |
| S93094B | Spectrum analysis beyond 120 GHz | |
| S93118B | Fast CW measurements | |
| S93460B | True-mode stimulus | |
| S93551B | N-port measurements | |
| S93898B | Built-in performance test software | |
| S930317B | Phase noise measurement up to 70 GHz | |
| S930321B | Phase noise measurement up to 125 GHz | |
| S94601B | Device measurement eXpert - DMX | |
| S94602B | Limit assistant | |
| S930700B | Modulation distortion up to 8.5 GHz | |
| S930701B | Modulation distortion up to 13.5 GHz | |
| S930702B | Modulation distortion up to 26.5 GHz | |
| S930704B | Modulation distortion up to 43.5 GHz |
Accessories
| N5224B-1CM | Rack mount kit for installation without handles | |
| N5224B-1CP | Rack mount kit for installation with handles | |
| N1966A | Pulse/IO Adapter | |
| N6171A | MATLAB Software | |
| N5224B-SSD | Additional removable solid state drive |
